Odoo SSO with Keycloak using OIDC
Step-by-step guide to configure Odoo SSO with Keycloak using OpenID Connect. Uses KeycloakPro's pre-built Keycloak image — supports 300+ application integrations out of the box — for custom add-on installation, client setup, and group mapping.
KeycloakPro Team
KeycloakPro Team
Introduction
Note: This add-on requires Odoo 16 or 17. Community and Enterprise editions are both supported.
Odoo's built-in OAuth provider module (auth_oauth) supports basic OAuth 2.0 flows but lacks proper OpenID Connect (OIDC) support — it does not validate ID tokens, does not map group claims, and does not handle token refresh. This guide uses a custom add-on that fills these gaps, giving you a standards-compliant OIDC flow with group synchronisation.
By the end of this guide, Odoo users will log in via your Keycloak realm, receive roles from their Keycloak group membership, and be transparently linked to their existing Odoo accounts by email.
Prerequisites
- Keycloak 24+ running and accessible (HTTPS in production)
- Odoo 16 or 17 (Community or Enterprise)
- KeycloakPro's pre-built Keycloak image — includes this custom OIDC add-on plus 300+ pre-configured application integrations. Contact Us to get access.
- Admin access to both Keycloak and Odoo
sudoaccess to the Odoo server
Step 1 — Configure Keycloak as OpenID Server.
Open the Keycloak admin console and navigate to your target realm (create one named odoo if you prefer isolation).

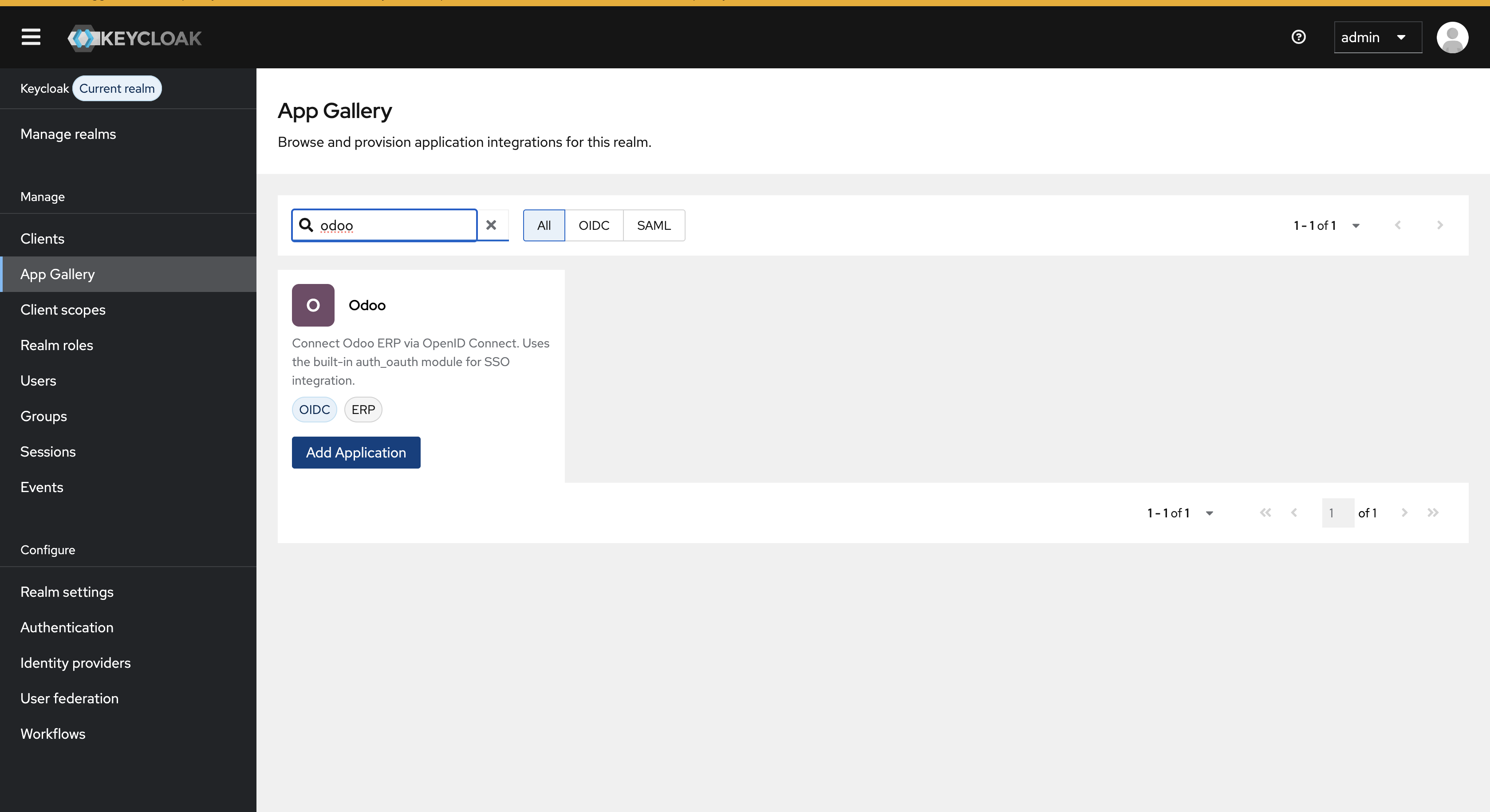

Navigate to the "App Gallery":
- Search for "Odoo"
- Client type:
OpenID Connect - Click Next

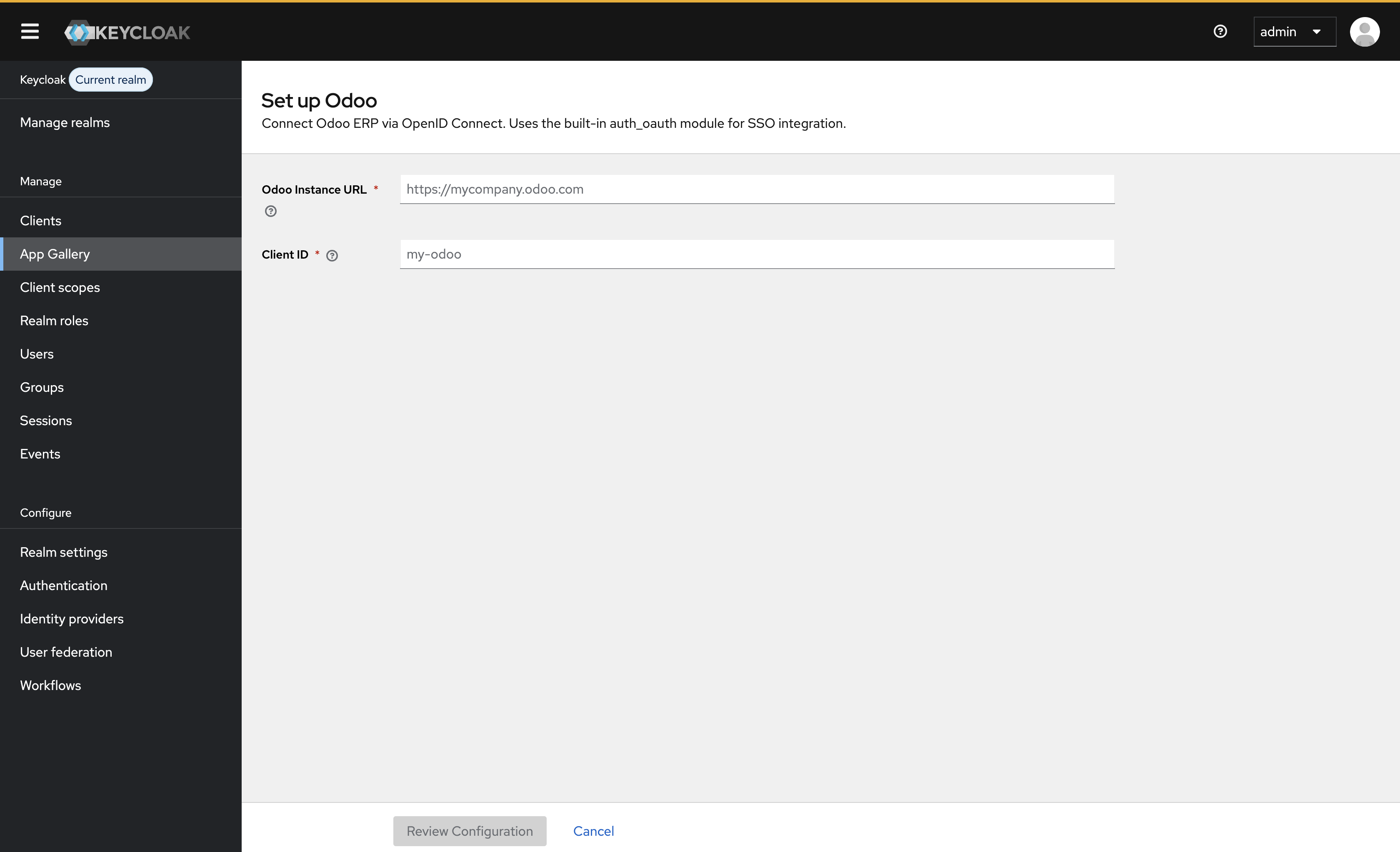

Keycloak Odoo client settings:
- Odoo Instance URL:
https://sales.example.com - Odoo Client ID: my-odoo
- Click on "Review Configuration"

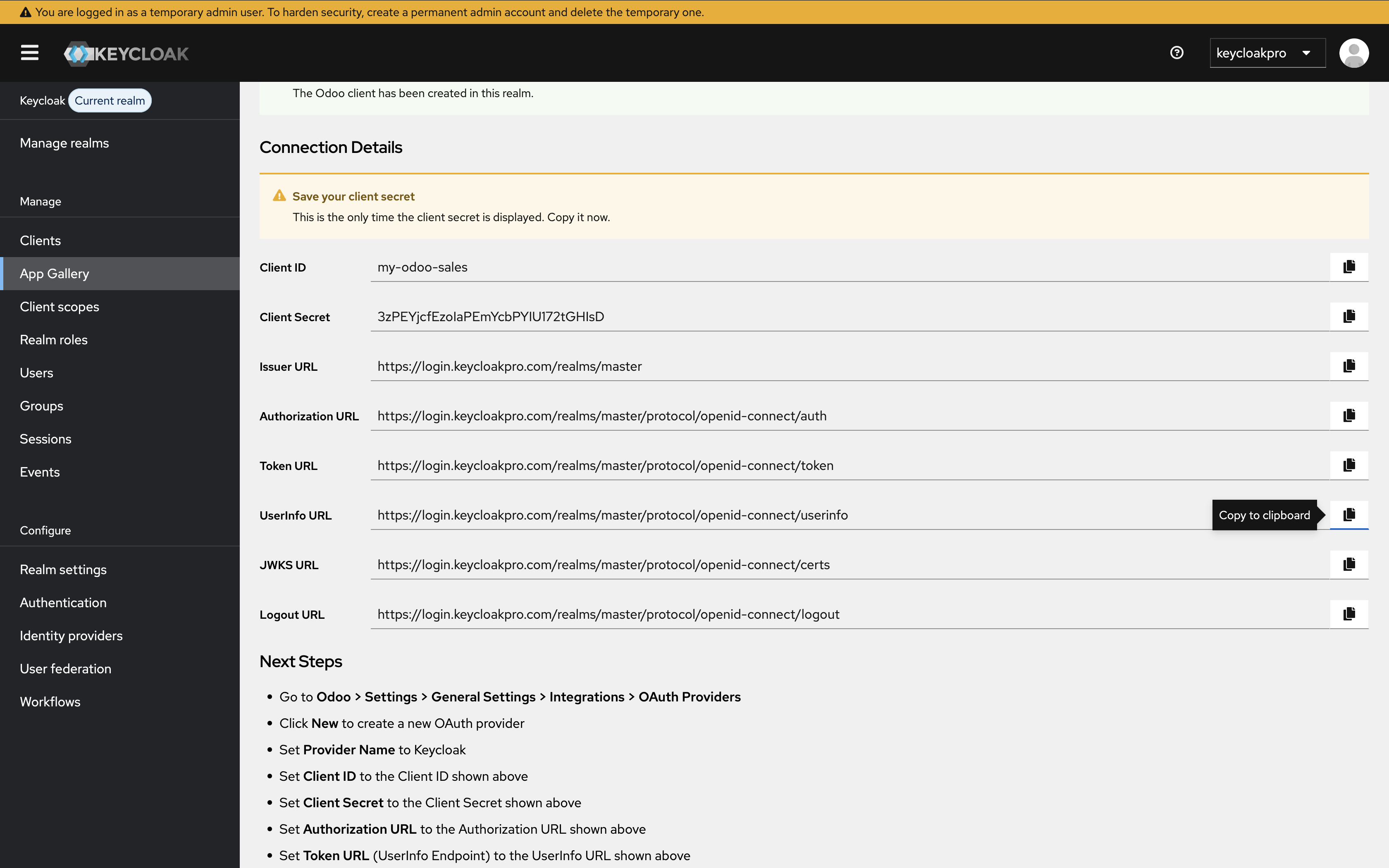

1.2 — Note your client secret and OpenID configurations:
Step 2 — Install the custom OIDC add-on
- Copy the provided zip file to your Odoo server and extract it into the extra addons directory:
sudo cp keycloak_oidc.zip /mnt/extra-addons/
sudo unzip /mnt/extra-addons/keycloak_oidc.zip -d /mnt/extra-addons/
sudo chown -R odoo:odoo /mnt/extra-addons/keycloak_oidc
Restart the Odoo service to pick up the new module:
sudo systemctl restart odoo
Then in the Odoo backend:
- Activate developer mode: Settings → General Settings → scroll to bottom → Activate developer mode
- Apps → Update Apps List → Update
- Search for
Keycloak OIDC→ Install
Step 3 — Configure the OAuth provider in Odoo

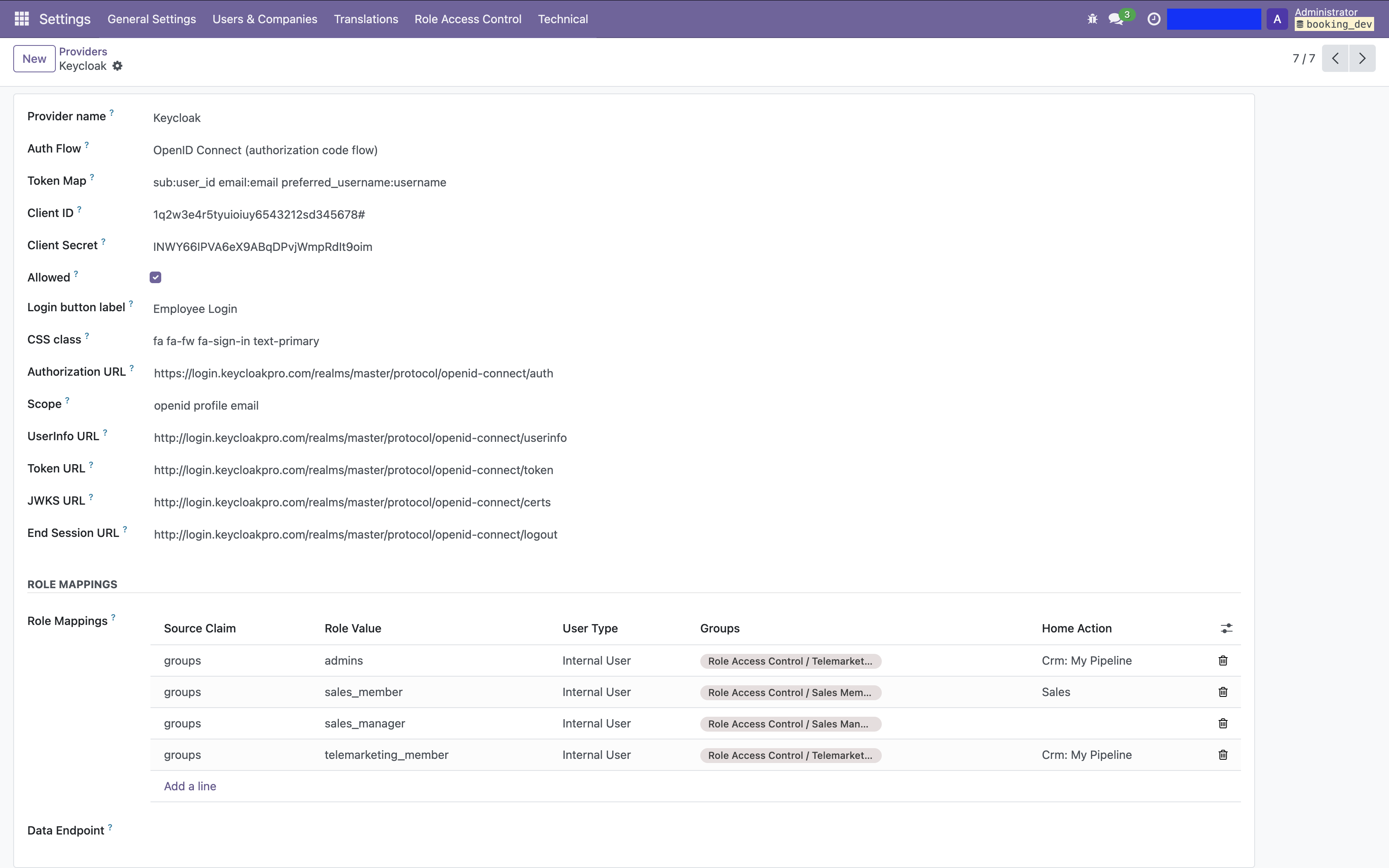

Navigate to Settings → Users & Companies → OAuth Providers and click New.
Note: Refer to step 1.2 for the client secret and OpenID configuration values.
| Field | Value |
|---|---|
| Provider name | Keycloak |
| Token Map | sub:user_id email:email preferred_username:username |
| Client ID | my-odoo |
| Client Secret | (paste from Keycloak credentials tab) |
| Allowed | ✓ |
| Login button label | Employee Login |
| Authorization URL | Authorization URL from step 1.2 |
| Scope | openid email profile |
| UserInfo URL | UserInfo URL from step 1.2 |
| Token URL | Token URL from step 1.2 |
| JWKS URL | Copy from step 1.2 |
| Data EndPoint | (leave empty — the add-on uses the ID token directly) |
| End Session URL | Logout URL from step 1.2 |
Note: groups scope is added by default in the Odoo application in KeycloakPro.
Click Save.

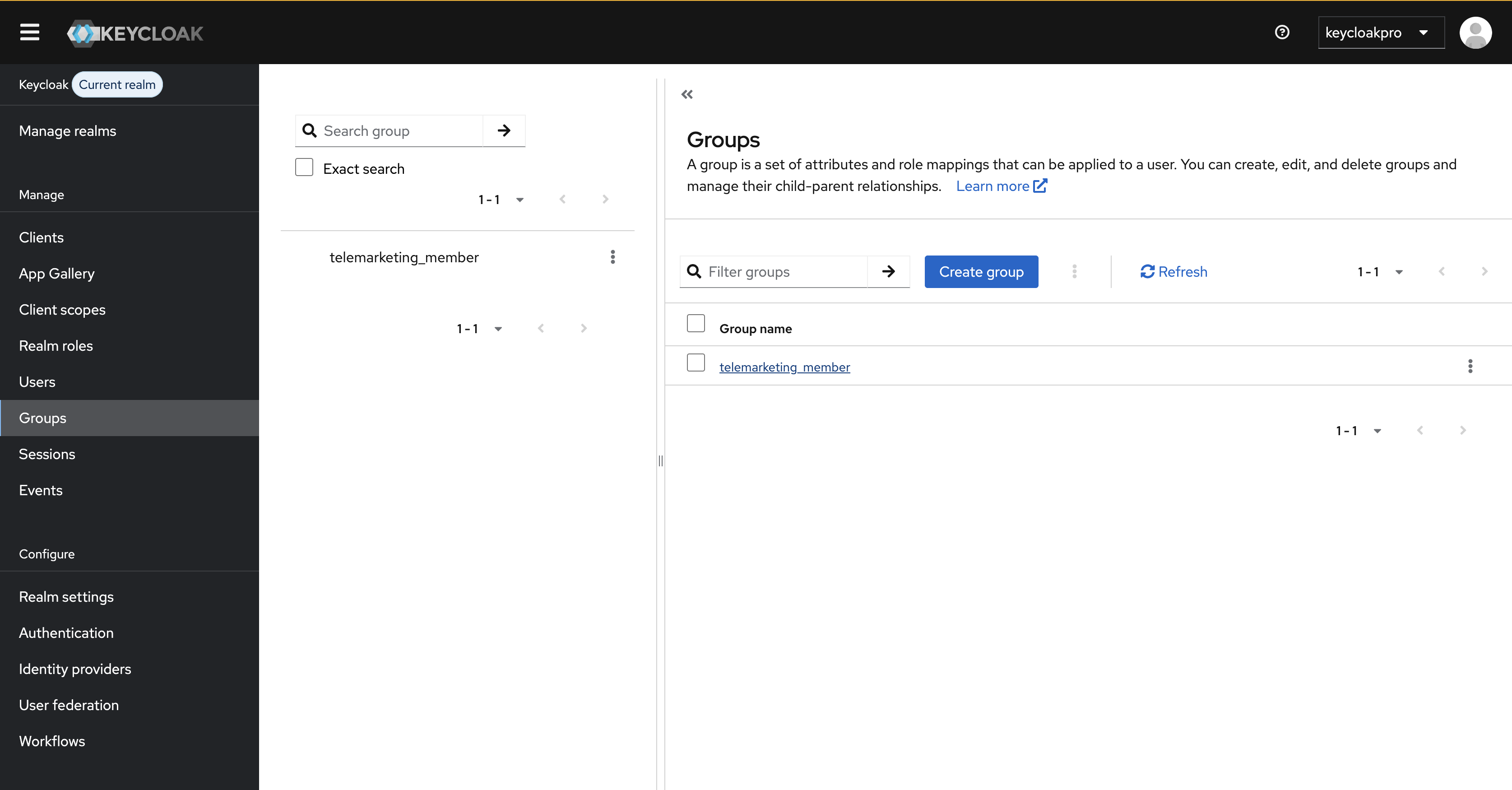

Step 4 — Map groups to Odoo access rights
The custom add-on reads the groups claim from the Keycloak ID token and looks up matching Odoo internal groups by Role Value.

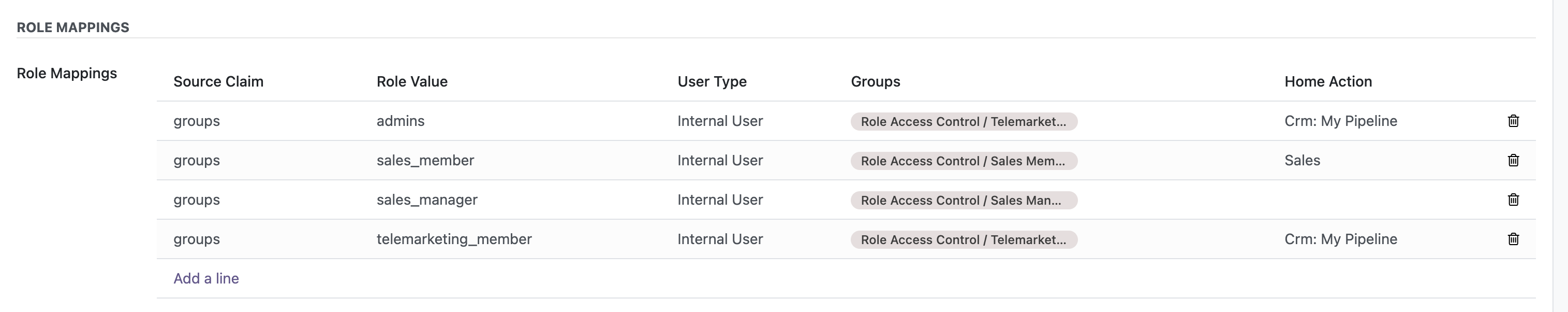

Navigate to Settings → Users & Companies → OAuth Providers --> "Role mapping" --> Select "Keycloak" ( recently added provider) (added by the module):
| Keycloak group path | Role Value | User Type | Groups | Home Actions |
|---|---|---|---|---|
groups | telemarketing_member | Internal User | (Groups for managing permissions) | Post Login redirect page |
Create one mapping row per Keycloak group you want to honour. Users in unmatched groups receive no additional Odoo rights.
Step 5 — Test the login flow
Open an incognito browser window and navigate to https://odoo.example.com/web/login.

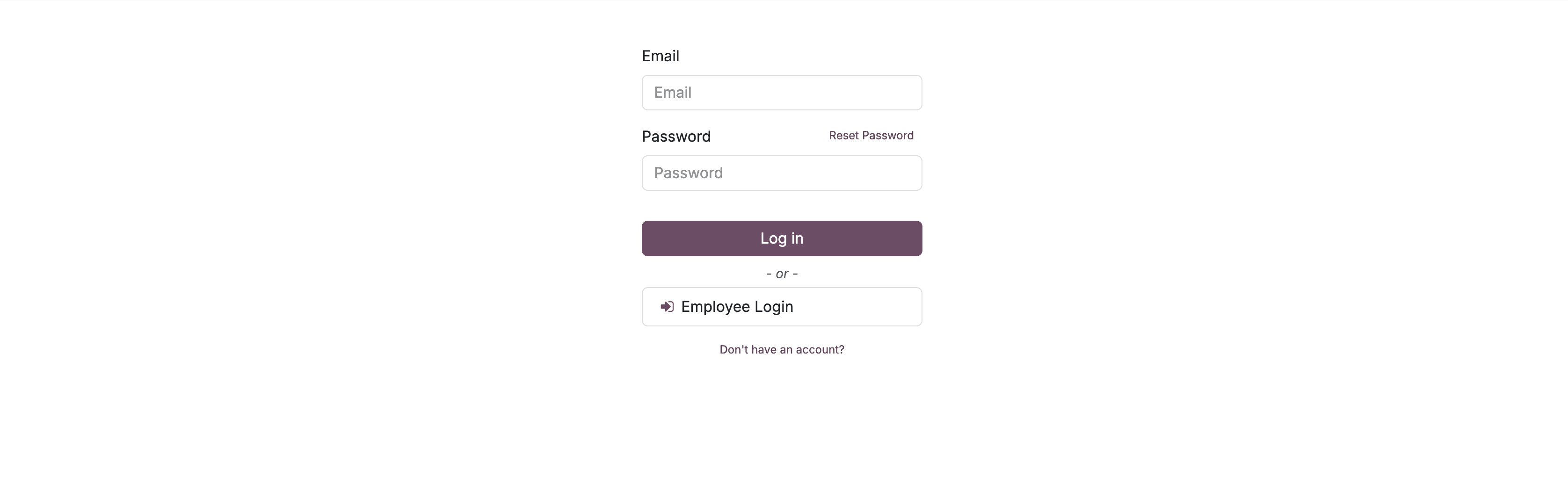

You should now see a Employee Login button below the standard login form.

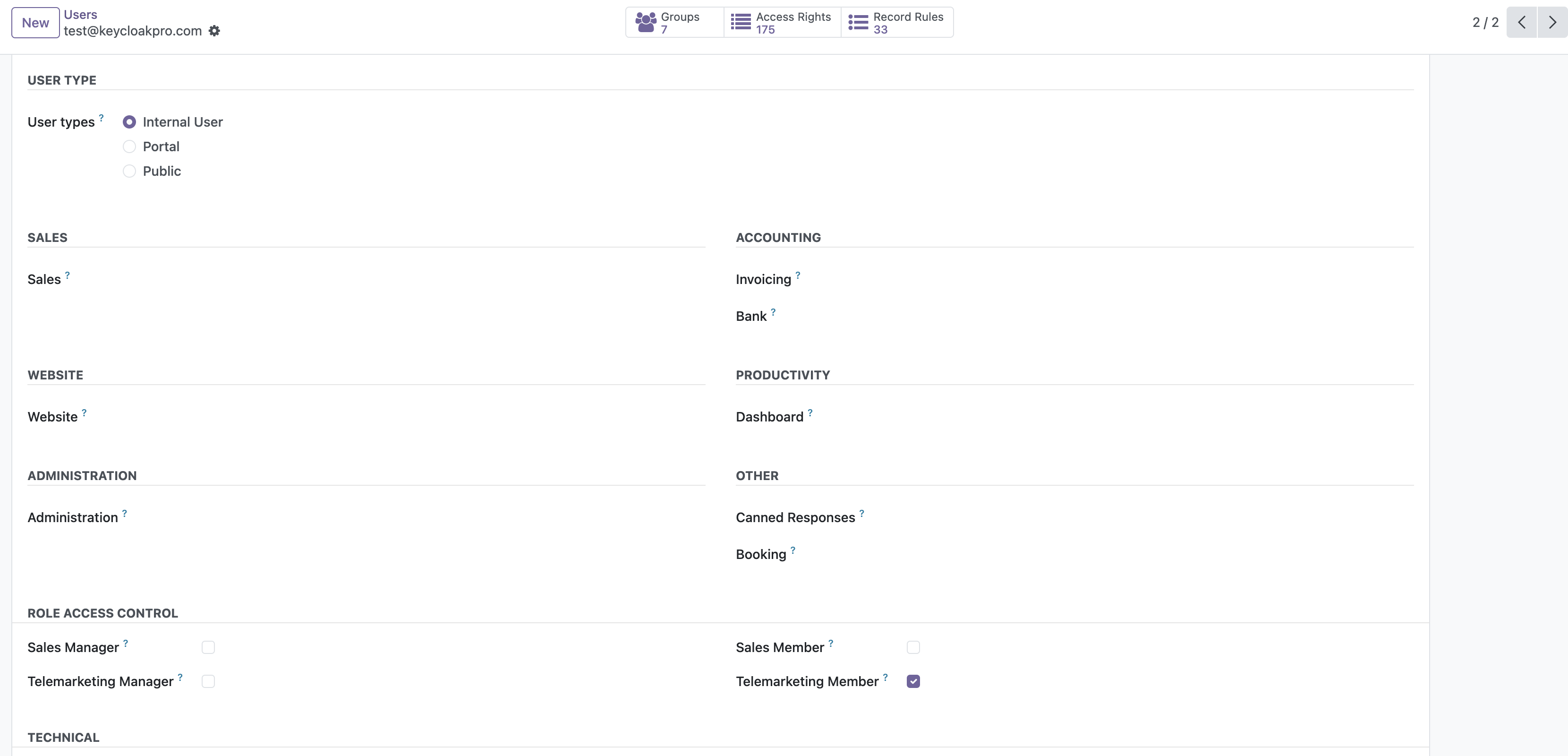

Click the button. You will be redirected to the Keycloak login page for the odoo realm. After authenticating, Keycloak redirects back to Odoo, which:
- Validates the ID token signature against Keycloak's JWKS endpoint
- Matches the email claim to an existing Odoo user (or creates a new portal user)
- Applies group mappings
- Logs you in
Step 6 — Troubleshooting common issues
invalid_redirect_uri
Keycloak is rejecting the redirect. Double-check that the Valid redirect URIs in the Keycloak client exactly match https://odoo.example.com/auth_oauth/signin — trailing slashes and port numbers matter.
Clock skew errors
OIDC tokens have short lifetimes. Ensure NTP is synchronised on both the Keycloak server and the Odoo server:
sudo timedatectl status
sudo chronyc tracking
Missing email claim
The email scope is required. Confirm it is in the Odoo provider scope field and that the Keycloak user account has a verified email address.
Nginx proxy misconfig
If Odoo sits behind Nginx, ensure the proxy passes the Host header correctly and sets X-Forwarded-Proto https:
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
Step 7 — Production checklist
Before going live, verify:
- HTTPS is enforced on both Keycloak and Odoo (no HTTP fallback)
- ID token lifetime is set to 5 minutes in the Keycloak realm
- Refresh token rotation is enabled (Keycloak realm settings → Sessions)
-
offline_accessscope is NOT included unless you explicitly need offline tokens - Keycloak's access token max age aligns with your session timeout policy
- Post-logout redirect URI is configured so users land back on the Odoo login page
- Group mappings are tested with a user who is not an Odoo admin
- SSO is tested from a fresh browser (no existing Odoo session cookies)
